Name: 120cell Hcpv Solar Cell 345W
Brand: Finergy Tech
Price: 1 USD

Brand Name : Finergy Tech

Model Number : 335W/340W/345W

Certification : ISO9001, OHSAS18001, IEC61215, IEC61730, TUV

Place of Origin : China

MOQ : 100 pieces

Price : Cheapest

Payment Terms : T/T, L/C

Supply Ability : 10MW per month

Delivery Time : 10 work day

Packaging Details : Standard Plywood Packing

Cell : JA/JINKO MONO PERC 158.75*158.75mm

Technology : MONO PERC 120(6*20) Series Half Cell

Warranty : 30 years

Power Insurance : CHUBB/Munich RE

Supplier : Chinese Manufacturer

Contact Now

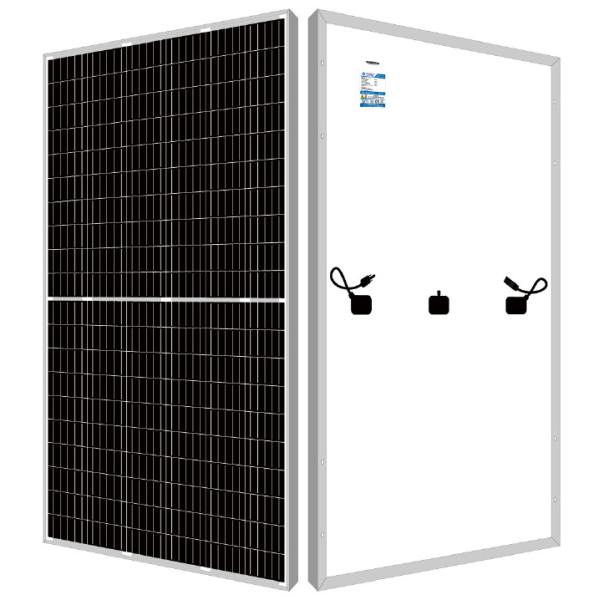

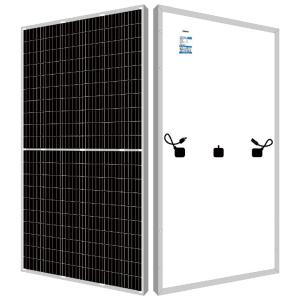

FSM335~FSM345M60HL (335W/340W/345W) MONO PERC Half-Cell PV Module

KEY FEATURES

5 Busbar Mono Half-Cell adopts PERC technology to guarantee higher output power and higher module efficiency (up to 20.5%).
Mono PERC Half-Cell PV module offers better temperature-dependent performance, less shading effect on the energy generation, lower risk of hot spot.
Excellent Anti-PID performance guarantee limited power degradation for mass production.
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
Certified to withstand: wind load (2400 Pa) and snow load (5400Pa)
High salt mist and ammonia resistance certified by TUV SGS
100% EL inspection and power test before packing
12 years product warranty and 25 years linear power warranty

Electrical Characteristics under STC

Module Type	FSM335M60HL	FSM340M60HL	FSM345M60HL
Maximum Power-Pmax (Wp)	335	340	345
Voltage at Maximum Power-Vmp (V)	34.0	34.2	34.4
Current at Maximum Power-Imp (A)	9.87	9.96	10.04
Open Circuit Voltage-Voc (V)	41.5	41.7	41.9
Short Circuit Voltage-Isc (A)	10.36	10.55	10.64
Module Efficiency-ηm (%)	19.9%	20.1%	20.5%
Operating Temperature	-40℃ to +85℃
Maximum System Voltage	1000V/1500V DC (IEC)
Power Tolerance	0~+4.99W
Temperature Coefficients of Pmax	-0.350%/℃
Temperature Coefficients of Voc	-0.289%/℃
Temperature Coefficients of Isc	0.048%/℃

Mechanical Characteristics

Structure of PV Module

Quality Inspection At Site

Packing & Delivery

120cell Hcpv Solar Cell 345W
